Gen 4 All-in-One (AiO)
Gen 4 All-in-One (AiO)
Introducing the Gen 4 All-in-One (AiO) DC Fast Charger—the smarter alternative for EV charging innovation. Fully equipped with all the latest features, this charger delivers a great user experience by combining speed, convenience, flexibility and reliability with a low total cost of ownership.
Features
- SAE Combo CCS1, CHAdeMO, and NACS Connector Options
- Simultaneous Charging
- Liquid Cooled Cables for 500A Continuous Charging
- 15”or 32” Optional Touchscreen
- Credit Card and RFID Payment Options
- Modular System for Future Upgrades
- Integrated Cord Retraction
- Compact Design
- Buy America/ NEVI Compliant Configurations Available
- Available in 60, 120, 150 or 180kW
Applications
Download Brochure
Gen 4 180kW All-in-One DC Fast Charger
Learn about the smart alternative for fast EV charging with 80% EV battery charge in as little as 10 to 15 minutes.
What to Look for in a DC Fast Charger
A DC fast charger delivers direct current straight to an EV’s battery, skipping the onboard AC-to-DC conversion in a Level 2 charger. The direct current charging is what makes a 10-15 minute visit for a full charge possible, instead of hours for an AC charge. But not every DC fast charger is built the same, and the differences matter most once a unit is running commercial-duty cycles rather than sitting in a lab or being described on a spec sheet.
Here’s what actually separates a DC fast charger built for durable commercial deployment and lengthy service from one that isn’t:
- Construction that’s been tested, not just rated. BTC POWER’s DC fast chargers are tested in conditions from -40°C to 70°C and built with the industrial-grade design and materials commercial and fleet operators need,
- Modular scalability. The Gen 4 AiO ships from a single chassis in 60, 120, 150, and 180 kW configurations, so an operator can start at a lower power tier and scale up in the field as demand grows, without replacing the unit.
- Verified uptime, not marketed uptime. BTC POWER’s DC chargers run at 98% uptime, based on factual operational data, not projected or lab-tested numbers. Ask any vendor how their uptime figure is measured before trusting it.
- Simultaneous charging without a throughput penalty. The Gen 4 AiO delivers full 180 kW to a single vehicle or s to 90 kW per vehicle across two connectors throsplitugh dynamic power allocation, so a two-bay site doesn’t have to choose between speed and capacity.
- Practical aftermarket service. BTC POWER’s service and engineering are 100% in-house and US-based — no offshore ticketing layer between a site host and the person who can fix a broken unit.
The speed of a DC fast charger (Level 3) supplies an essential fueling option across a wide range of applications, from high-traffic corridors and retail centers to fleet depots where turnover speed matters most. In mixed-use settings, such as shopping centers, corporate campuses, medical complexes or government facilities, pairing DC fast chargers with Level 2 installations creates a balanced charging ecosystem. Level 3 units serve time-sensitive users and higher-throughput vehicles like delivery vans or rideshare fleets, while Level 2 chargers accommodate longer-dwell visitors such as office employees, shoppers, overnight guests, visitors or even dedicated fleet vehicles with an overnight dwell time. This complementary approach maximizes infrastructure efficiency, supports multiple vehicle types, and ensures charging availability aligns with real need.
The DC fast EV charger designed for the future
Retailers Choice Product of the Year
Modular scalability is what makes the Gen 4 AiO a sound long-term purchase. Because the charger ships from a single chassis in 60, 120, 150, and 180 kW configurations, an owner/operator can size the initial investment to match current traffic and scale up in the field as EV adoption grows in the area; without replacing the unit or absorbing the cost of a second capital outlay.
That same forward-looking design carries through to the charger’s cables: the 500A liquid-cooled cables are built to handle higher current loads than air-cooled alternatives, so the hardware that serves today’s vehicles doesn’t need to be swapped out as EV battery sizes and charge-acceptance rates continue to climb.
Together, modular power scaling and cable headroom mean a site host isn’t guessing what EV demand will look like in five years, and the Gen 4 AiO is built to grow into it.
DC fast chargers – the ultimate customer experience
The Gen 4 DC fast charger offers the speed customers want, with the ability to charge an EV in as little as 10-15 minutes.
The Gen 4 AiO charger leverages distributive power allocation to charge two EVs simultaneously at rapid speeds. With the ability to deliver the full 180 kW of power to a single car or distribute it evenly between two cars at 90kW, you can efficiently serve multiple customers, reducing waiting times and maximizing customer turnover.
Different connector options make the charger compatible with most EVs on the road today, ensuring you can cater to a wide range of customers and vehicles. Our sales engineers can help you select the right connector for your application.
Weighing in lighter than traditional cables, the ergonomic design consideration eases use for customers, further increasing their satisfaction with the charging station. The standard cable is 18 feet in length. An optional 25-foot cable is available to serve larger vehicles, such as fleet operations and charging class 8 trucks.
Touchscreen a Retail Differentiator

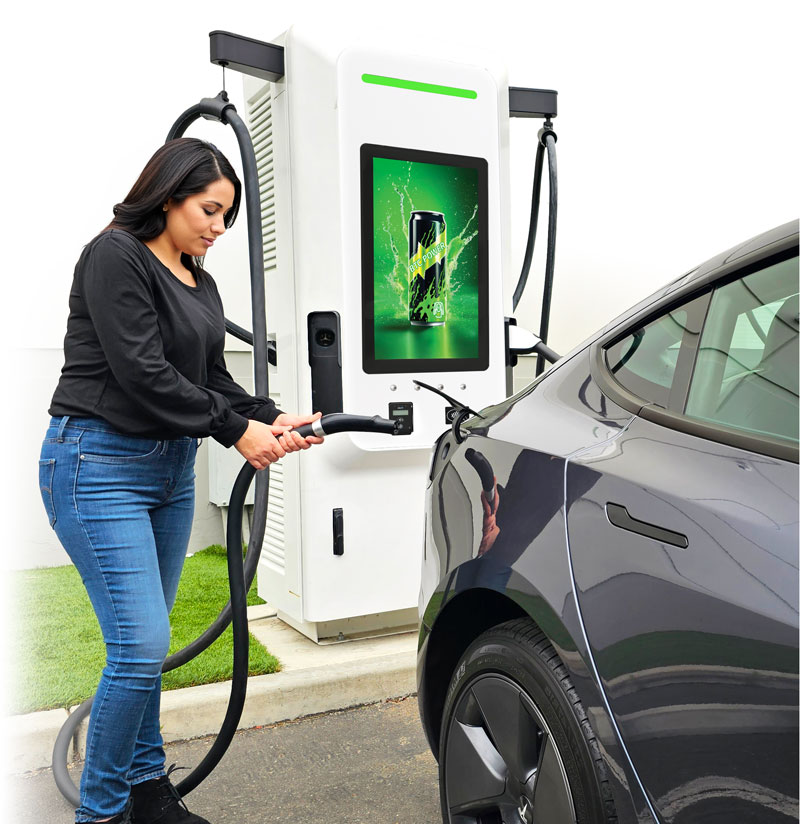

The Gen 4 AiO’s optional 32″ touchscreen turns charging time into a revenue opportunity rather than dead time for the site. While a customer waits 10-15 minutes for their vehicle to reach 80%, the screen can display targeted advertisements, promotions, or loyalty program offers. This turns a captive audience into an in-store sales opportunity.
For c-store, retail, and fueling station operators, that screen real estate does real work: it can promote high-margin items, surface specials timed to the charging session, or drive loyalty program signups. A 15″ touchscreen option is also available for sites that want payment and session instructions without the full advertising build-out.
Frequently Asked Questions
What is a DC fast charger?
A DC fast charger delivers direct current straight to an EV’s battery, skipping the onboard AC-to-DC conversion of a Level 2 charger. That’s what makes it fast: BTC POWER’s Gen 4 All-in-One (AiO) DC fast charger can take a vehicle from empty to 80% in 10-15 minutes, versus several hours on Level 2 AC charging. DC fast chargers are the standard choice for retail, fueling, fleet, and highway corridor sites where vehicles need to charge and go.
How long does it take to charge an EV with a 180 kW charger?
On BTC POWER’s Gen 4 AiO 180 kW configuration, a typical EV reaches an 80% charge in 10-15 minutes, supported by liquid-cooled cables rated for 500A continuous current. Actual charge time varies by vehicle battery size and the vehicle’s own maximum charge-acceptance rate. The 180 kW figure is the charger’s output ceiling, not a guaranteed charge speed for every vehicle.
What’s the difference between an all-in-one DC fast charger and a split system?
An all-in-one (AiO) DC fast charger combines power conversion and dispensing in a single cabinet. The Gen 4 AiO is BTC POWER’s all-in-one line, available in 60 to 180 kW configurations. A split system separates the power cabinet from the dispenser, so a single centralized cabinet can serve multiple dispensers across a site with dynamic power sharing between them. All-in-one units are suitable for sites with one or two charging bays and limited space. Split systems make more sense at scale, installations with five or more bays, where a shared power cabinet lowers the cost per port.
Can a 180kW charger charge two vehicles at the same time?
Yes, a 180kW charger can be designed to charge two vehicles at the same time. The Gen 4 AiO from BTC POWER uses distributive power allocation to split its output, sending the full 180kW to one vehicle or splitting it evenly at 90kW each when two cars are plugged in simultaneously. This flexibility helps site operators reduce wait times during busy periods without needing a second unit.
What is an all-in-one DC fast charger?
An all-in-one, or AiO, DC fast charger combines the power conversion equipment and the vehicle-facing dispenser into a single unit rather than splitting them across separate cabinets. The Gen 4 AiO is BTC POWER’s version of this design, built as a modular system so operators can start at a lower power tier, like 60kW, and scale up to 180kW later without replacing the whole unit.
Is a 180kW charger NEVI compliant?
A 180kW charger can be NEVI compliant. BTC POWER’s Gen 4 AiO offers Buy America and NEVI compliant configurations, which matter for site hosts pursuing federal highway-corridor funding. Compliance is configuration-specific, so the exact build needs to be confirmed against NEVI’s requirements before a project can count on that funding.
