60 kW All-in-One DC Fast Charger
60 kW All-in-One DC Fast Charger
BTC POWER’s 60 kW All-in-One (AiO) DC Fast Charger is a compact, DC EV charging solution optimized for medium dwell-time applications, such as fleet depots, forklift operations, and shopping centers. The 60 kW AiO balances costs and charging performance with lower power requirements, installation costs, and infrastructure upgrades compared to higher output DC systems. The 60 kW AiO delivers a full 60 kW to a single vehicle or splits its output 30 kW/30 kW across two vehicles charging simultaneously. Available in wall-mount or pedestal configurations, the 60 kW AiO can be installed in most locations.
Features
- Maximum output: 60 kW; splits to 30 kW/30 kW across two vehicles
- Up to 200A continuous current (100A per cable with power share)
- CCS1 or NACS connector
- 480 VAC, 3-Phase input; 73A input current
- NEMA 3R enclosure; IK10 impact rating
- Wall or pedestal mount
- OCPP 1.6 JSON, upgradeable to OCPP 2.0.1
- Plug and Charge (ISO 15118), RFID and Credit Card authentication
Fleet & Logistics
Fleet depots, delivery and service vehicles, logistics and warehousing facilities, and forklift operations
Workplace & Retail
Offices and corporate campuses, shopping centers, and retail lots where vehicles park 45 minutes to two hours
Parking, Hospitality & Multifamily
Parking garages, hotels, and apartment and condominium communities
DC Fast Charger Replacement
Sites upgrading aging first-generation DC fast chargers without new utility service
Built for the Way Your Vehicles Actually Park
Lower cost to install
Runs on standard 480 VAC three-phase service at 73A, so most commercial sites avoid transformer upgrades or new utility service, often the largest line item in a high-power DC project.
Right-sized power
Full 60 kW to one vehicle, or 30 kW to two at once, for depots, retail lots, and garages where 180 kW or more would be over-built.
Fits where high-power DC can’t

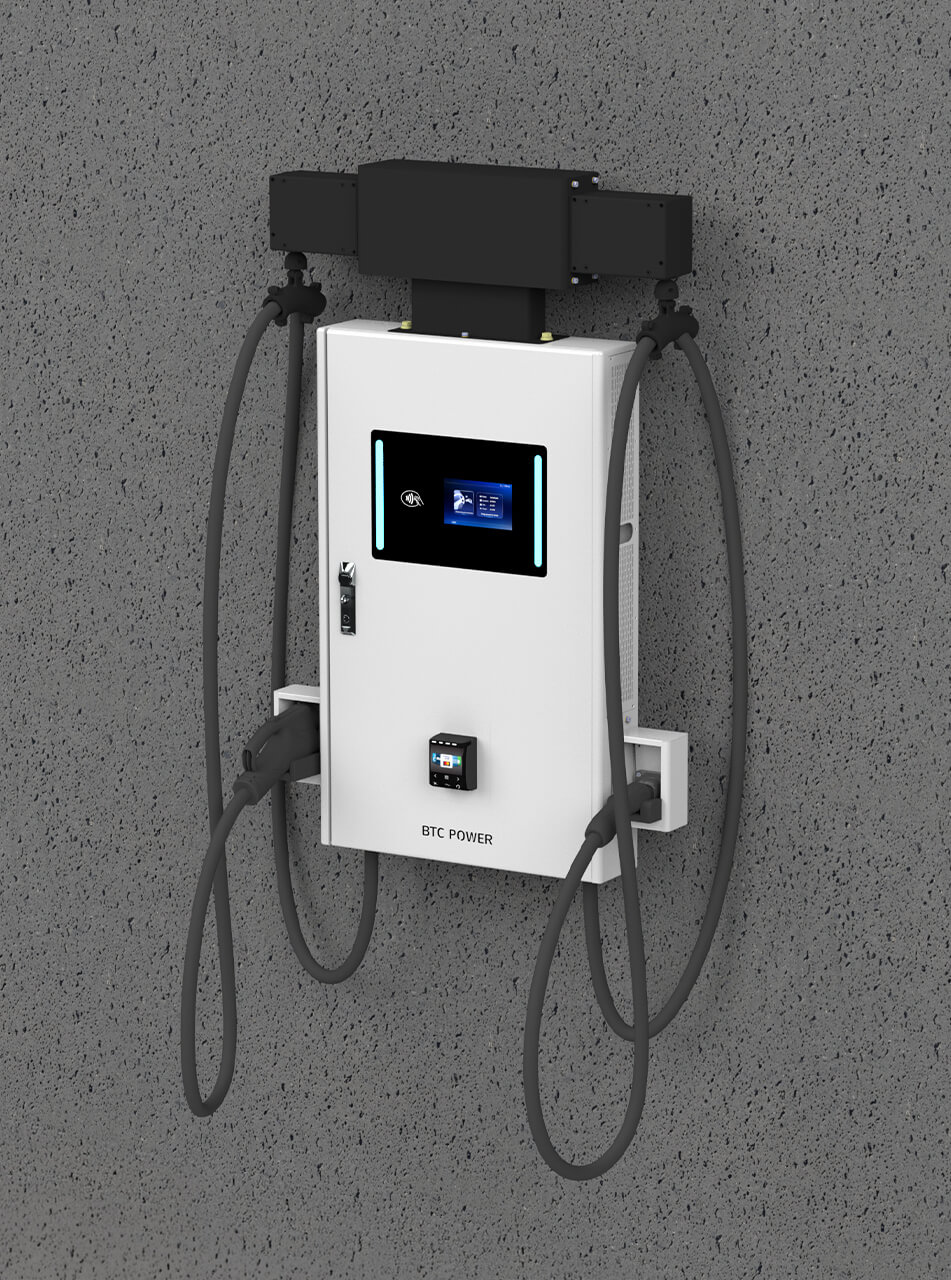

Wall or pedestal mount, NEMA 3R and IK10 rated, so it works on a garage wall, in a depot bay, or in an open lot.
Filling the Gap Between Level 2 and High-Power DC
Fleet operators do not always need a fast turnaround — they need reliable, simultaneous charging for many vehicles overnight. The 60 kW AiO fills the power gap between Level 2’s 19.2 kW ceiling and 180 kW DC line.
The 60 kW AIO is also well suited to replacing aging first-generation DC fast chargers. Many of these chargers do not support modern NACS-equipped vehicles, and their existing electrical infrastructure often cannot accommodate upgrades to 180 kW or 360 kW without costly utility work. Commercial dwell-time locations such as shopping centers, where vehicles typically park for 45 minutes to two hours, benefit from the 60 kW AiO that aligns charging speed to the time vehicles are actually on site.
FAQ
What’s the difference between the 60 kW AiO and a Level 2 charger?
The differences between the 60 kW AiO and a Level 2 charger start with the difference in type of charge. The 60 kW AiO is a DC fast charger, delivering DC power directly to the vehicle battery at up to 60 kW, roughly 45 to 60 minutes for a full charge at that output, or split 30 kW/30 kW across two vehicles. A Level 2 charger relies on alternating current (AC), typically topping out at around 19.2 kW, and can take several hours for a full charge.
Is the 60 kW AiO a good fit for replacing an older DC fast charger?
Yes, many first-generation DC fast chargers do not support current connector standards like NACS and can’t be upgraded without an increase in utility service capacity. The 60 kW AiO offers a modern, NACS-compatible replacement at a comparable power level without requiring that infrastructure upgrade.
